Description
EVOAQUA pressure piping system is characterised by:
- Excellent long-term durability properties (up to 50 years in service);
- High resistance to corrosion;
- Very low resistance to flow;
- Chemically and biologically inert material;
- Comprehensive range of joints and adapter fittings;
- Environmentally-friendly material PE is 100% recyclable.

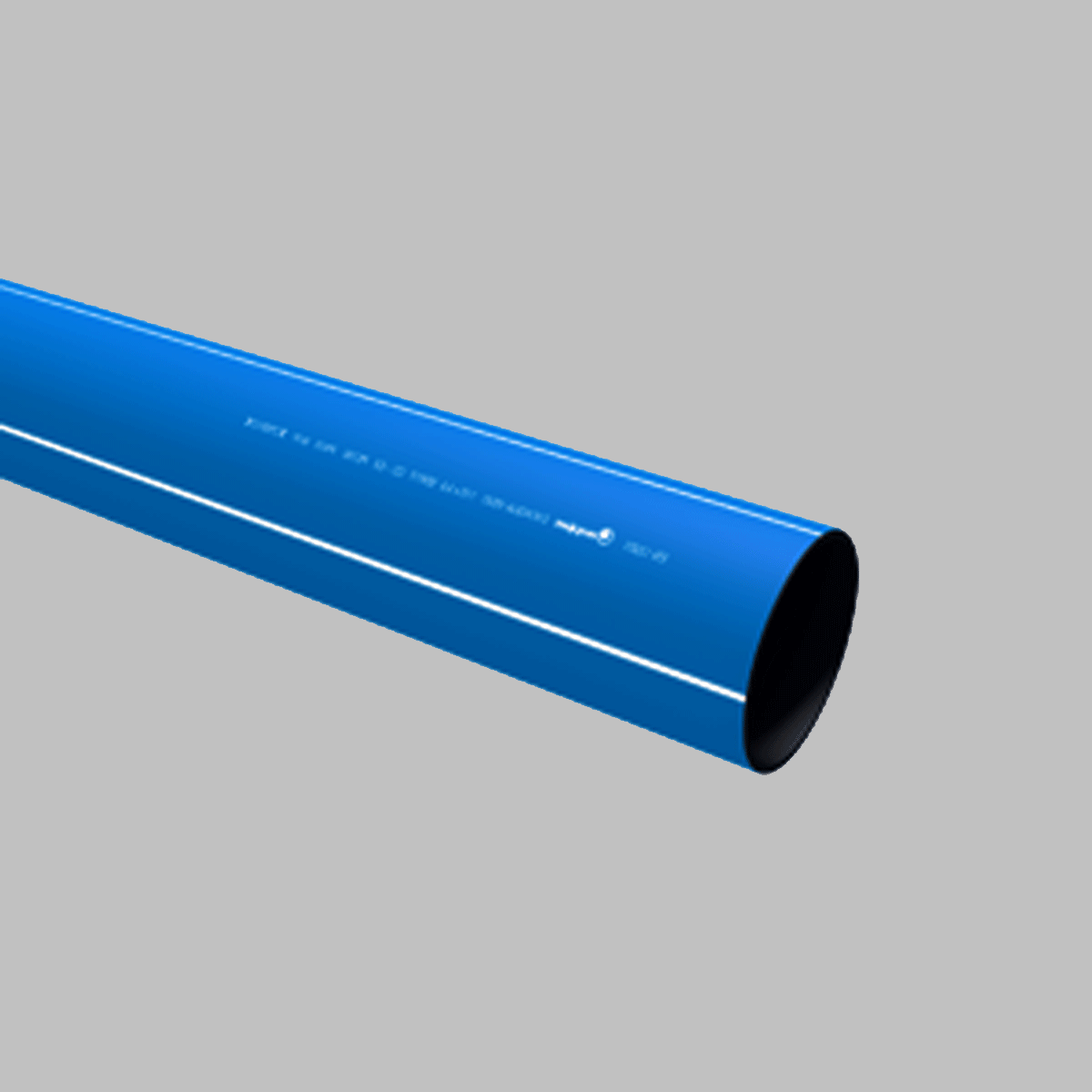

PE100, pressure class PN12.5
|
DN/OD [mm]
|
e [mm]
|
ID [mm]
|
L [m]
|
Code
|
|---|---|---|---|---|
| 20 | 1.8 | 16.4 | 100/200 | 4111360203(100/200) |
| 25 | 2 | 21 | 100/200 | 4111360253(100/200) |
| 32 | 2.4 | 27.2 | 100/200 | 4111360323(100/200) |
| 40 | 3 | 34 | 100/200 | 4111360403(100/200) |
| 50 | 3.7 | 42.6 | 100/200 | 4111360503(100/200) |
| 63 | 4.7 | 53.6 | 100 | 4111360633100 |
| 75 | 5.6 | 63.8 | 12/100 | 4111360753(012/100) |
| 90 | 6.7 | 76.6 | 12/50/100 | 4111360903(012/050/100) |
| 110 | 8.1 | 93.8 | 12/50/100 | 4111361103(012/050/100) |
| 125 | 9.2 | 106.6 | 12 | 4111361253012 |
| 140 | 10.3 | 119.4 | 12 | 4111361403012 |
| 160 | 11.8 | 136.4 | 12 | 4111361603012 |
| 180 | 13.3 | 153.4 | 12 | 4111361803012 |
| 200 | 14.7 | 170.6 | 12 | 4111362003012 |
| 225 | 16.6 | 191.8 | 12 | 4111362253012 |
| 250 | 18.4 | 213.2 | 12 | 4111362503012 |
| 280 | 20.6 | 238.8 | 12 | 4111362803012 |
| 315 | 23.2 | 268.6 | 12 | 4111363153012 |
| 355 | 26.1 | 302.8 | 12 | 4111363553012 |
| 400 | 29.4 | 341.2 | 12 | 4111364003012 |
| 450 | 33.1 | 383.8 | 12 | 4111364503012 |
| 500 | 36.8 | 426.4 | 12 | 4111365003012 |
| 560 | 41.2 | 477.6 | 12 | 4111365603012 |
| 630 | 46.3 | 537.4 | 12 | 4111366303012 |
