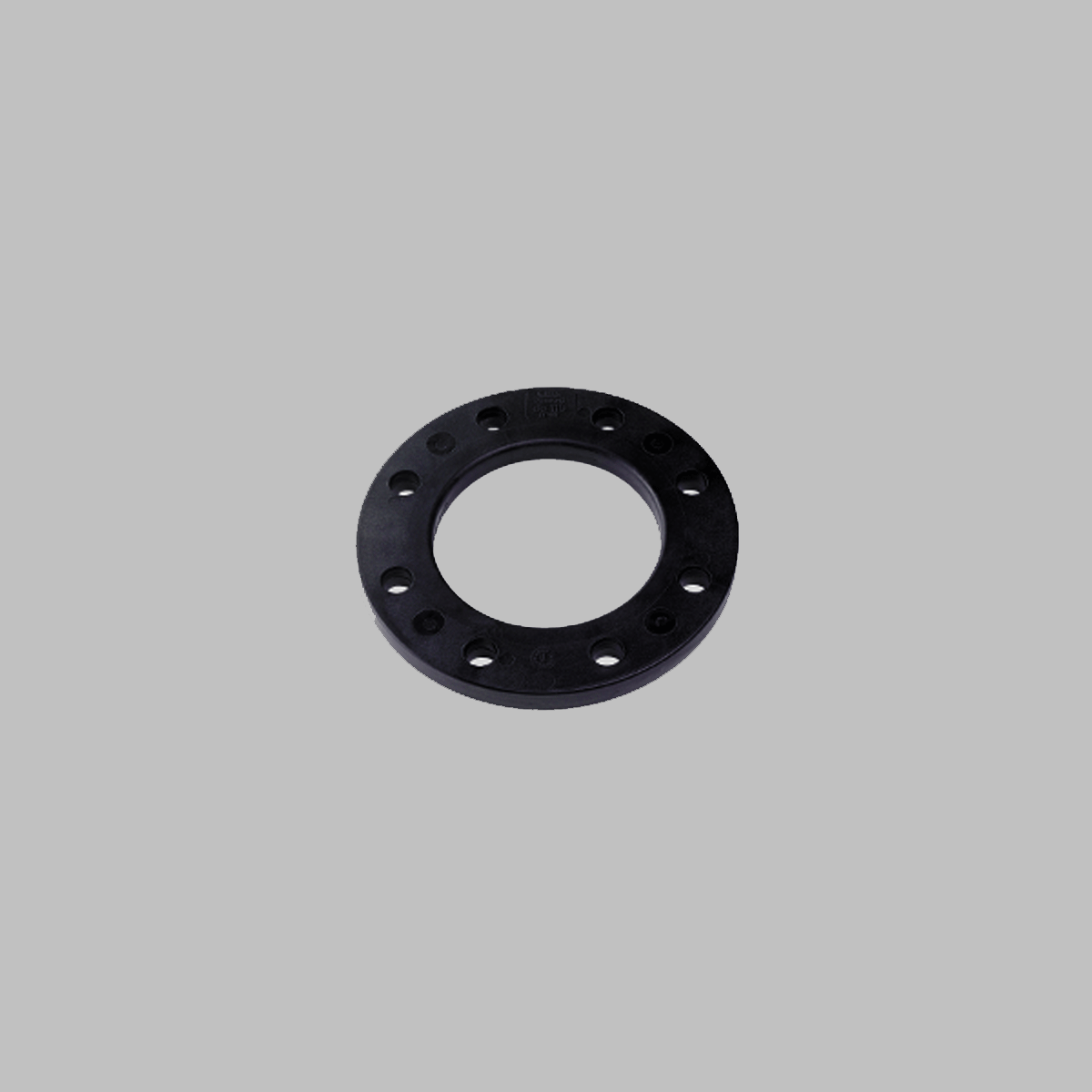

Description
|
dn, [mm] PE
|
D, [mm] Steal
|
c [mm]
|
s, [mm]
|
a, [mm]
|
k, [mm]
|
f, [mm]
|
number of holes
|
Pack [pcs]
|
Code
|
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PN 10 | PN 16 | PN 10 | PN 16 | PN 10 | PN 16 | PN 10 | PN 16 | PN 10 | PN 16 | |||||
| 63 | 50 | 78 | 19 | 19 | 165 | 165 | 125 | 125 | 18 | 18 | 4 | 4 | 1 | 412312063(0/1) |
| 75 | 65 | 92 | 20 | 20 | 185 | 185 | 145 | 145 | 18 | 18 | 4 | 4 | 1 | 412312075(0/1) |
| 90 | 80 | 108 | 20 | 20 | 200 | 200 | 160 | 160 | 18 | 18 | 8 | 8 | 1 | 412312090(0/1) |
| 110 | 100 | 128 | 22 | 22 | 220 | 220 | 180 | 180 | 18 | 18 | 8 | 8 | 1 | 412312110(0/1) |
| 125 | 100 | 135 | 22 | 22 | 220 | 220 | 180 | 180 | 18 | 18 | 8 | 8 | 1 | 412312125(0/1) |
| 140 | 125 | 158 | 22 | 22 | 250 | 250 | 210 | 210 | 18 | 18 | 8 | 8 | 1 | 412312140(0/1) |
| 160 | 150 | 178 | 24 | 24 | 285 | 285 | 240 | 240 | 22 | 22 | 8 | 8 | 1 | 412312160(0/1) |
| 180 | 150 | 188 | 24 | 24 | 285 | 285 | 240 | 240 | 22 | 22 | 8 | 8 | 1 | 412312180(0/1) |
| 200 | 200 | 235 | 24 | 26 | 340 | 340 | 295 | 295 | 22 | 22 | 8 | 12 | 1 | 412312200(0/1) |
| 225 | 200 | 238 | 24 | 26 | 340 | 340 | 295 | 295 | 22 | 22 | 8 | 12 | 1 | 412312225(0/1) |
| 250 | 250 | 288 | 26 | 29 | 395 | 405 | 350 | 355 | 22 | 26 | 12 | 12 | 1 | 412312250(0/1) |
| 280 | 250 | 294 | 26 | 29 | 395 | 405 | 350 | 355 | 22 | 26 | 12 | 12 | 1 | 412312280(0/1) |
| 315 | 300 | 338 | 26 | 32 | 445 | 460 | 400 | 410 | 22 | 26 | 12 | 12 | 1 | 412312315(0/1) |
