FHs-UV-0H-SMART

In Stock

Description

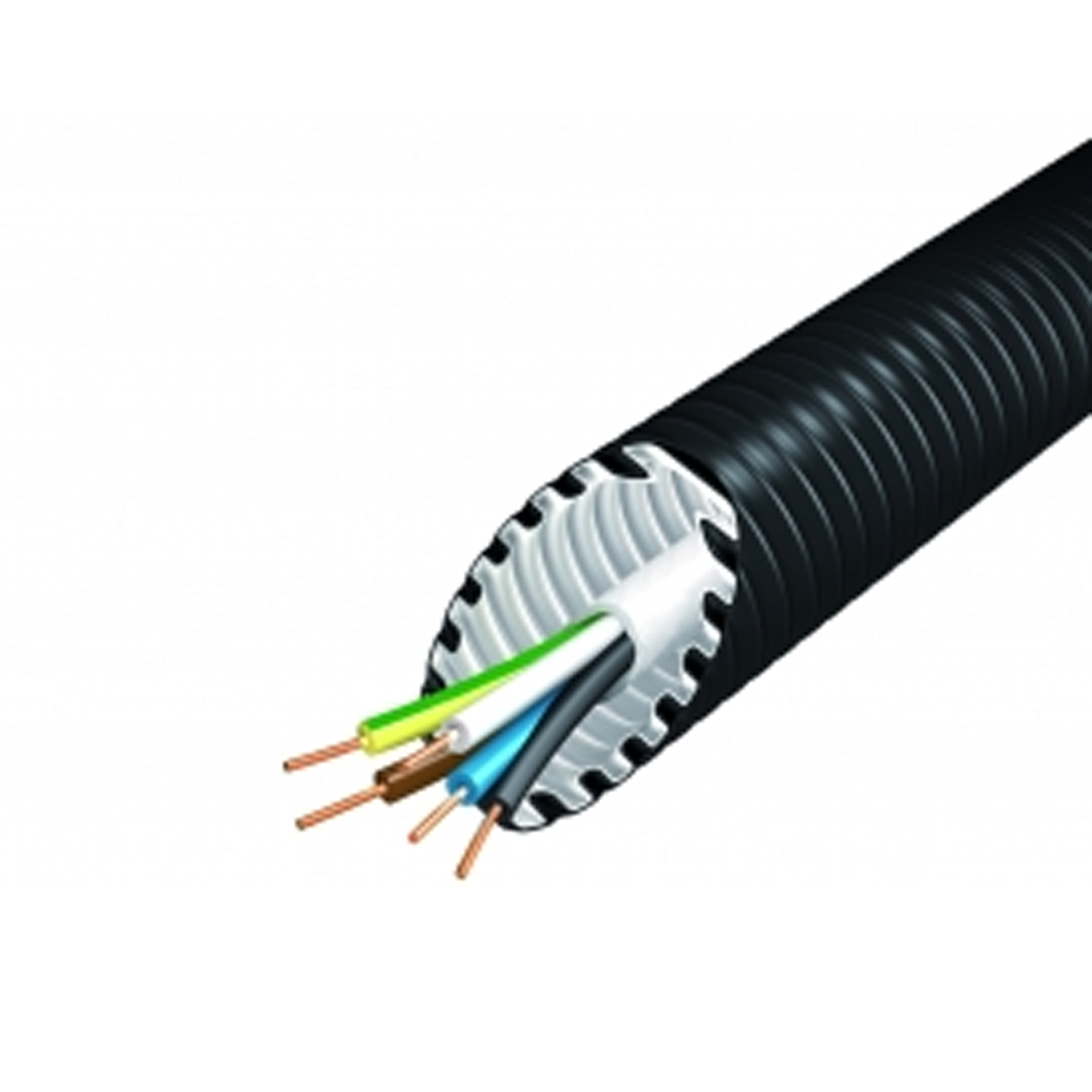

Base layer + gliding layer + sheath

Recommended application – Outside, in direct UV rays

Advantages:

  • Time saving (no pulling of cables into conduits required)
  • Cost saving (less man-hours required for the work)
  • Halogen-free material for conduits and cables
  • The gliding inner layer allows quick and easy addition of wires or cables also after installation
  • Due to better heat exchange, more load can be applied to the wires

Technical information:

  • Wires: 3×1.5mm2; 4×1.5mm2; 3×2.5mm2; 5×1.5mm2; 5×2.5 mm2, etc.
  • Cables: 3×1.5mm2; 3×2.5mm2; 5×1.5mm2; 5×2.5 mm2; telecommunication cables
  • Easy identification of wires due to the colour coding according to the European standard
  • Temperature resistance of the conduit: from -25°C to +105°C
  • Available sizes: 16, 20, 25, 32, 40, 50 mm
  • Available in rolls of 100 m and 50 m, depending on the diameter of the conduit
