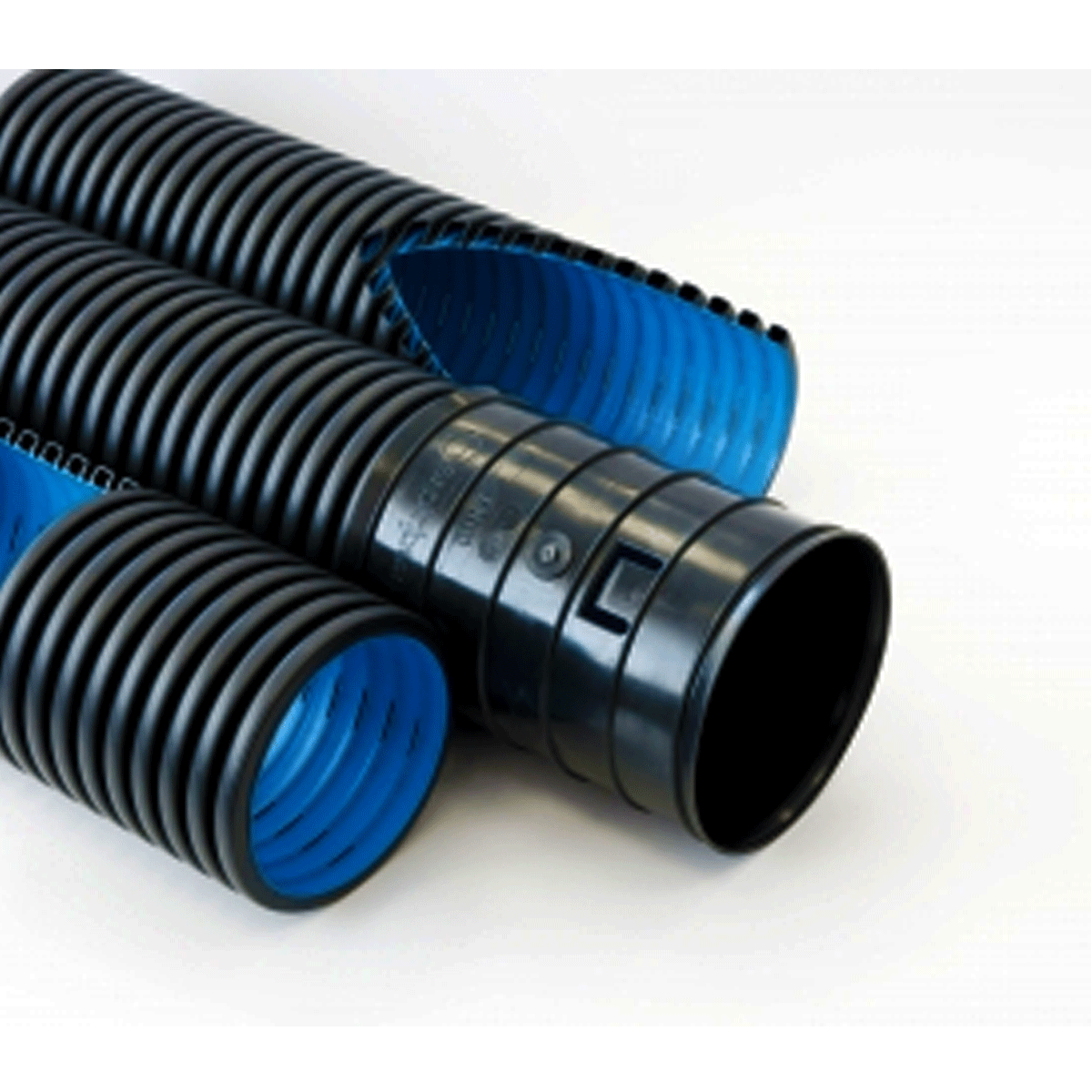

EVODRAIN HARD 6m pipe with coupler SN8, perforated 180°, sealing ring in the last groove, without filter

In Stock

Description

Drainage system includes corrugated double-wall pipes made of high-density polyethylene (PEHD) and perforated at 180o. Offer for drainage system includes also wide range of connections. Pipes are available in 6m bars. Other sizes are available to a request.

EVODRAIN HARD pipe system is characterised by the following:

  • excellent impact strength properties;
  • extremely low resistance to flow facilitated by smooth inner layer;
  • higher resistance against UV radiation;
  • excellent corrosion-resistance;
  • excellent long-term strength properties (service life up to 50 years),
  • chemical and biological inertness;
  • easy to transport and install;
  • environmentally neutral material: PE is 100% recyclable and can be used repeatedly;
  • working temperature from -20o to +90o;
  • assembly temperature from -10o

PEHD guarantees high compression strength, ring stiffness for double-wall pipes — SN8 (8 kN/m²). Conforms with DIN 4262-1:2009

DN/OD [mm] Water permeability [cm2/m] Perforation length [mm] Perforation width [mm] Number of perforations between corrugations Package [m] Code
63 45 17,68  1,2  2 198 5120631801006
75 45  17,7  1,2  2 145 5120751801006
90 45  17,66  1,4  2 114 5120901801006
110 50  13,75  1,2  4 120 5121101801006
125 50  15,27  1,2  4 90 5121251801006
160 50  16,66  1,4  4 56 5121601801006
