Description

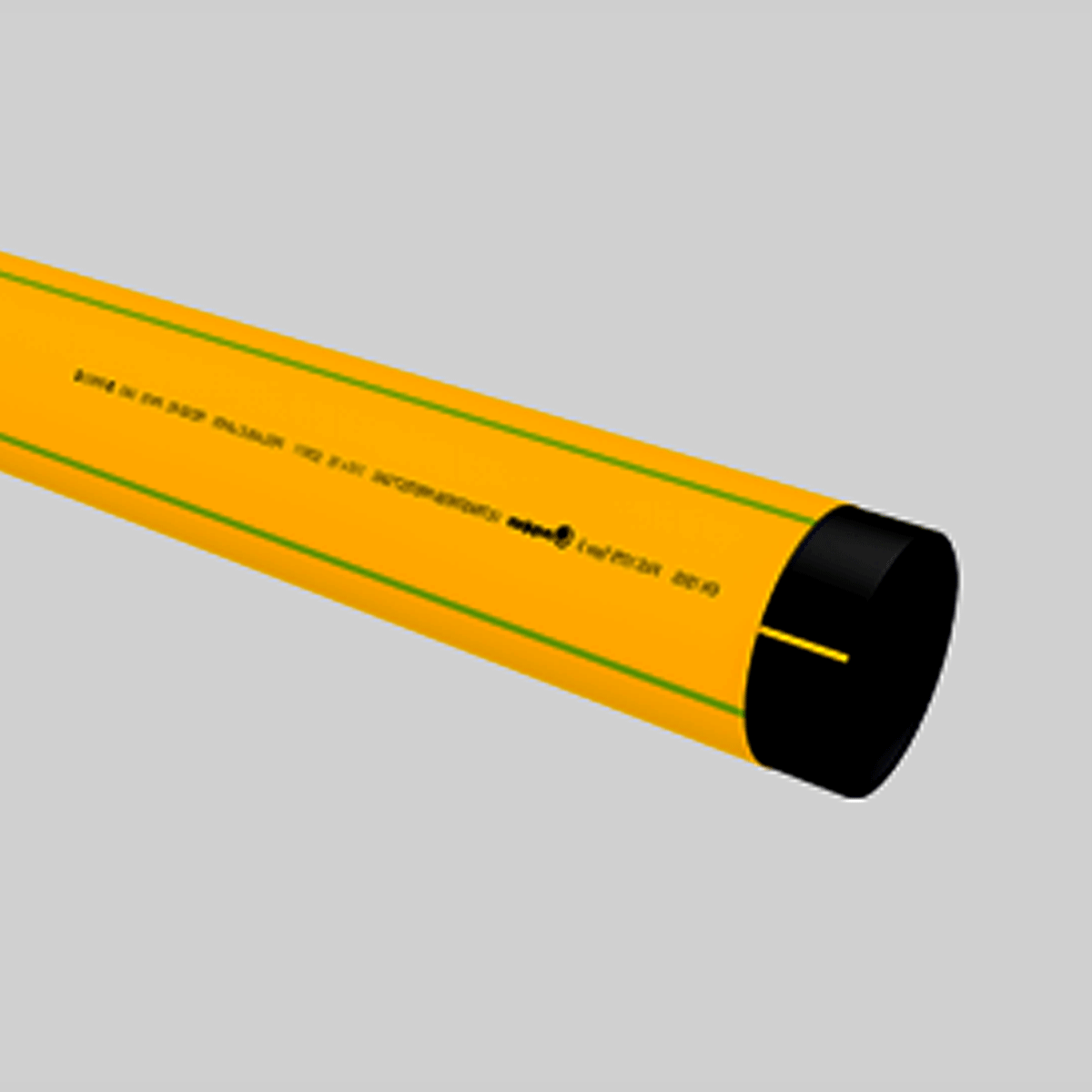

PE100-RC/PP, pressure class PN6 [bar]
|
DN/OD [mm]
|
e [mm]
|
ID [mm]
|
L [m]
|
Code
|
|---|---|---|---|---|
| 25 | 2.3 | 20.4 | 100/200 | 4211760255(100/200) |
| 32 | 2.3 | 27.4 | 100/200 | 4211760325(100/200) |
| 40 | 2.3 | 35.4 | 100/200 | 4211760405(100/200) |
| 50 | 2.9 | 44.2 | 100/200 | 4211760505(100/200) |
| 63 | 3.6 | 55.8 | 100 | 4211760635100 |
| 75 | 4.3 | 66.4 | 12/100 | 4211760755(012/100) |
| 90 | 5.2 | 79.6 | 12/50/100 | 4211760905(012/050/100) |
| 110 | 6.3 | 97.4 | 12/50/100 | 4211761105(012/050/100) |
| 125 | 7.1 | 110.8 | 12 | 4211761252015 |
| 140 | 8 | 124 | 12 | 4211761402015 |
| 160 | 9.1 | 141.8 | 12 | 4211761602015 |
| 180 | 10.3 | 159.4 | 12 | 4211761802015 |
| 200 | 11.4 | 177.2 | 12 | 4211762002015 |
| 225 | 12.8 | 199.4 | 12 | 4211762252015 |
| 250 | 14.2 | 221.6 | 12 | 4211762502015 |
| 280 | 15.9 | 248.2 | 12 | 4211762802015 |
| 315 | 17.9 | 279.2 | 12 | 4211763152015 |
| 355 | 20.2 | 314.6 | 12 | 4211763552015 |
| 400 | 22.8 | 354.4 | 12 | 4211764002015 |
