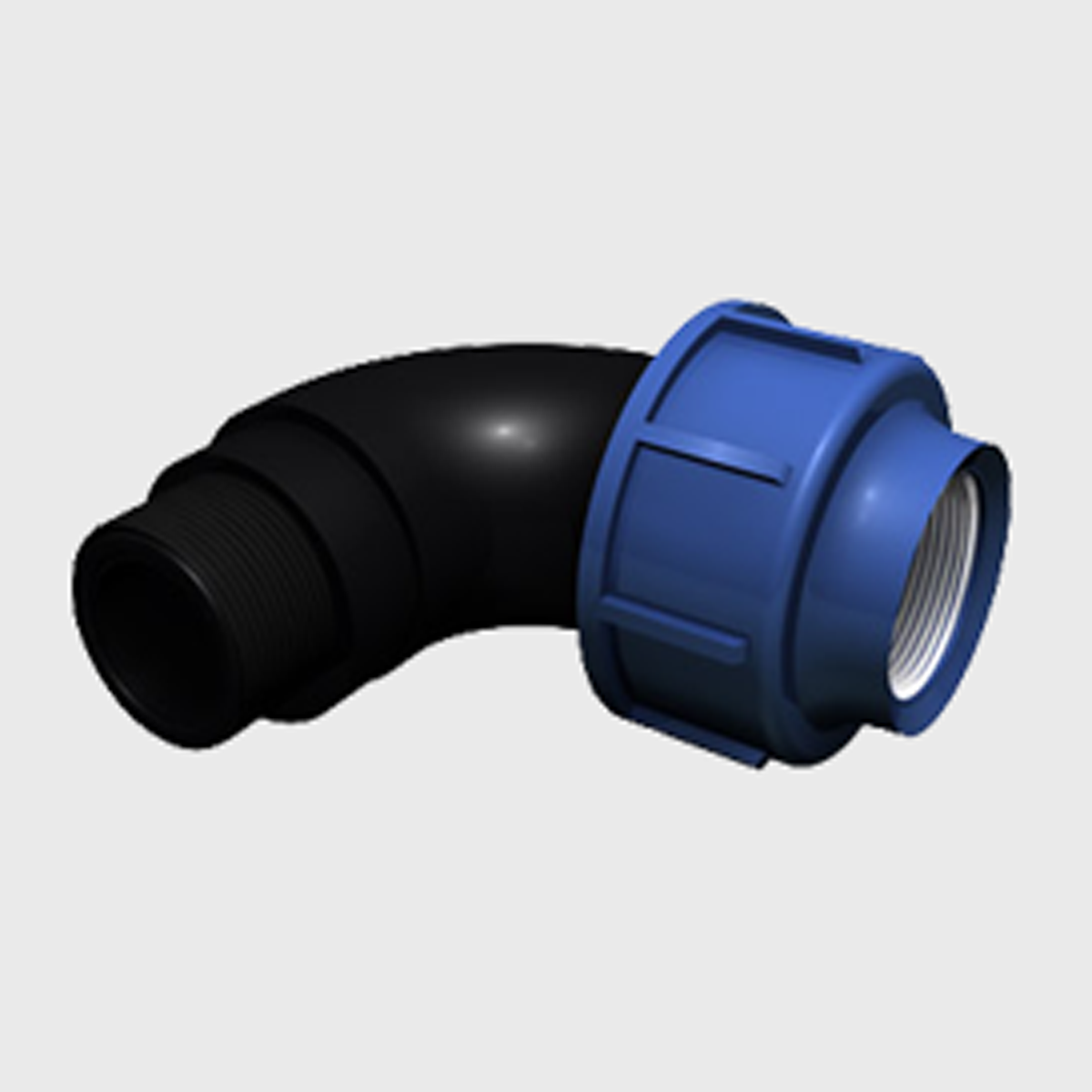

90° elbow with transition to outside thread

In Stock

Description

Compression fittings made from polypropylene guarantee excellent watertightness in every pressure class. Rated pressure resistance for nominal diameters 20/32/40/50/63 mm is PN16, and for nominal diameters 75/90/110 mm – PN10.

DN / OD [mm]
Thread [“]
Color
Pressure class [bar]
Pack [pcs]
Code
20 1/2″ blue/black PN 16 70 412107020050
20 3/4″ blue/black PN 16 70 412107020075
25 1/2″ blue/black PN 16 40 412107025050
25 3/4″ blue/black PN 16 40 412107025075
25 1″ blue/black PN 16 30 412107025100
32 3/4″ blue/black PN 16 30 412107032075
32 1″ blue/black PN 16 30 412107032100
40 1″ blue/black PN 16 15 412107040100
40 1 1/4″ blue/black PN 16 15 412107040125
50 1 1/2″ blue/black PN 16 18 412107050150
63 2″ blue/black PN 16 20 412107063200
75 2 1/2″ blue/black PN 10 14 412107075250
90 3″ blue/black PN 10 8 412107090300
110 4″ blue/black PN 10 4 412107110400
